Model No.: ZCLF-80CF

Production Capacity: 1000 PCS

Delivery Date: ABOUT12 DAYS

Standard or Nonstandard: Others

Structure: Pilot

Temperature of Media: High Temperature

Brand Name: Round.Star

Function: an electromechanical valve ...

Certificate: CE ISO

Company value: to make wealth for our soci...

Company style: to be faithful,practical, c...

Means of Transport: Ocean,Air;by express

Packing: Carton

Power: Solenoid

Pressure: High Pressure

Material: Casting

Media: Others

Specification: PILOT OPERATED

why us?: we have more than 40 years ...

Export Area: Asia,America, Europe and so...

Company spirit: To challenge our future and...

Market conception: what we do will be based on...

steam electric valve:
two way normally closed valves for automatic control of superheated water/steam.air with PTFE .

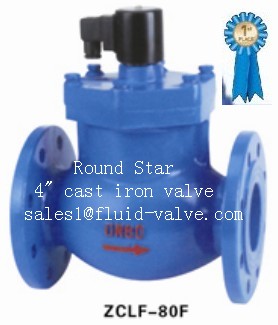

2 Way   IP54 pilot opreatered water air oil cast iron steam electric valve
Valves available in normally closed  constructions. Available in either AC or DC operated with cast iron bodies/ stainless steel tube/ soft magnetic alloy core.

Thread: if different from G connection, it should be indicated.
United conversion:

Pressure: 1kg/cm2=1bar=0.1MPa=14.2233psi

1psi=0.069ba

[Technical Specifications ]

-- Media: Water, Steam, Oil (below 20cst)

--Function type: Normally Closed (N/C), Normally Open (N/O)

----Pressure: Normally Closed 16 bar, Normally Open 8bar

--Temperature: -5 ÷180℃

--Mode of action: Pilot operated

--Body material: Brass

-- Sealing material: PTFE

--Protection class: IP54

OPTIONS

Viton (V):  suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon;

the MAX.150℃. In case you choose Viton, please state "V" in your order.

And the coil protection class is IP65.

How to order

Valve type
Connection pipe size
Connection
Function type
Voltage
ZCLF
---15
K
---DC:24V

15         40
Blank : Thread
Blank: N/C
AC:220V
20       50
F: Flange
K: N/O
AC:110V
25
DC:24V
32
DC:12V

PARAMETERS(N/C)

Model
ZCLF-15
ZCLF-20
ZCLF-25
ZCLF-32
ZCLF-40
ZCLF-50
ZCLF-40CF
ZCLF-50CF
ZCLF-65CF
ZCLF-80CF
ZCLF-100CF
G Connection
1/2"
3/4"
1"
1¼"
1½"
2"
Flange1½"
Flange 2"
Flange 2½"
Flange 3"
Flange 4"
Orifice Size
mm
15
20
25
32
40
40
40
50
65
80
100
Cv Value
5.2
8.5
15.3
20.4
31
51
31
51
76
119
187
L
mm
80
100
110
135.5
131
141
196
205
240
268
340
H
mm
150
156
165
192
200
210
173
214
320
334
362
H1
mm
129
130
137
157
165
170
147
196
228
238
254
Medium temperature ℃
-5 ÷180℃
Pressure
bar
Normally Closed : 0.4÷16 bar              Normally Open: 0.4÷ 8bar
Power
AC:220V~AC:230V/50-60HZ 41VA;  AC110 ~AC:120V/50-60HZ 14VA;  DC24 36 W;  DC12  24W ;  Range:±10%
