Product Detail

Model No.: RSPS-25F

Production Capacity: 10000PCS

Delivery Date: 20

Standard or Nonstandard: Standard

Structure: Plug

Temperature of Media: High Temperature

Brand Name: ROUND STAR

Function: an electromechanical valve ...

Certificate: CE, ISO, ROHS

Company value: to make wealth for our soci...

Company style: to be faithful,practical, c...

Means of Transport: Ocean,Air;by express

Packing: Carton

Power: Solenoid

Pressure: High Pressure

Material: Brass

Media: Others

Specification: SEMI-DIRECT ACTING

why us?: more than 40 years

Export Area: Asia,America,Europe and so ...

Company spirit: to be faithful,practical, c...

Market conception: what we do will be based on...

steam magnetic valve: solenoid valve for steam
hot water valve
flange solenoid valve
2)brass
3) for steam.hot water max 180 degree

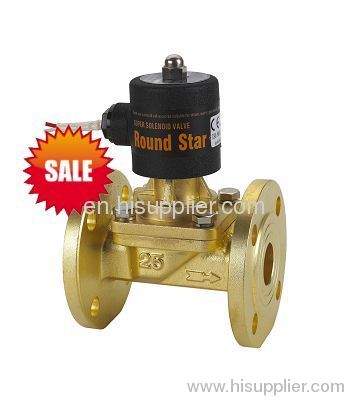

2way brass IP54 water gas hot water steam magnetic valve

Valves available in normally closed constructions. Available in either AC or DC operated with SUS bodies/ stainless steel tube/ soft magnetic alloy core.

Solenoid semi-direct operated valves available in normally closed constructions. Available either AC or DC operated with cast iron body material and flange connection for a wide variety of applications. Diaphragm(PTFE) from 1/2 to max 2", Our most economical, high flow valve available. Stainless steel tube and plunger and also soft magnetic alloy core.

[Technical Specifications ]

-- Media: Steam, hot water, air, oil (below 20cst)

--Function type: Normally Closed (N/C)

--Pressure: 10 bar

--Temperature: -5 ÷180℃

--Mode of action: Semi-direct lift type

--Body material: Brass

-- Sealing material: PTFE

--Protection class: IP54 (Metal coil)

OPTIONS

EPDM (E): suitable to water, hot water, gas, Freon, the MAX. 120 ℃. The coil is plastic coil, IP65.

Viton (V): suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon; the MAX.150℃ ; The coil is plastic coil, IP65.

How to order

Valve type	Connection pipe size	Connection	Voltage	Seal
RSPS	---15	---DC:24V
	15 40	Blank: Thread	AC:220V	Blank :PTFE
20 50	F: Flange	AC:110V	V:Viton
25	DC:24V	E:EPDM
32	DC:12V

PARAMETERS

Model		RSPS-15	RSPS-20	RSPS-25	RSPS-32	RSPS-40	RSPS-50	RSPS-20F	RSPS-25F	RSPS-32F	RSPS-40F	RSPS-50F
Connection pipe size		1/2"	3/4"	1"	1¼"	1½"	2"	Flange 3/4"	Flange 1"	Flange 1¼"	Flange 1½"	Flange 2"
Orifice Size	mm	15	20	25	32	40	50	20	25	32	40	50
Cv Value		4.8	8.5	14	20	31	51	8.5	14	20	31	51
L	mm	63	81	90	96	116	147	107	123	135	155	190
H	mm	132	148	158	183	182.5	194	200	215	251	260	277
H1	mm	117	131	136	157	152.5	174	131	136	157	152.5	174
Power		AC:220V~AC:230V 22VA		AC:220V~AC:230V 30VA	AC:220V~AC:230V/50-60HZ 38VA; AC110 ~AC:120V/50-60HZ 35 VA; DC24 56W; Range:±10%
Medium temperature		-5 ÷180℃
Pressure	bar	0÷10
