Product Detail

Model No.: 2W-200-20N

Production Capacity: 10000 PCS

Delivery Date: 20

Standard or Nonstandard: Standard

Structure: Diaphragm

Temperature of Media: High Temperature

Brand Name: ROUND STAR

Function: an electromechanical valve ...

Certificate: CE, ISO, ROHS

Company spirit: to challenge our future and...

Company value: to make wealth for our soci...

Means of Transport: Ocean,Air;by express

Packing: Carton

Power: Solenoid

Pressure: Vacuum

Material: Brass

Media: Oil

Specification: DIRECT ACTING

why us?: more than 40 years experien...

Export Area: Asia,America,Europe and so ...

Company style: to be faithful,practical, c...

Market conception: what we do will be based on...

electromagnetic valve:
1) 2way brass
2) vacuum / weak acid air water
3) IP65

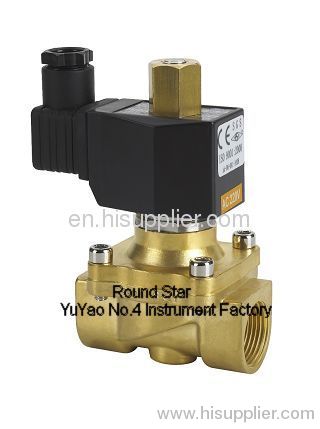

2 way copper IP 65 gas air weak acid vacuum Pneumatic solenoid valve

Valves available in normally closed and normally open constructions. Available in either AC or DC operated with plastic bodies/ stainless steel tube,plunger / soft magnetic alloy core. therefore the price is lower compared with that of brass and stainless steel.

2" inch water solenoid valve[Technical Specifications ]
-- Media: Gas, Water, Air, Oil (below 20cst), Weak acid & alkali, Vacuum
--Function type: Normally Closed (N/C), Normally Open (N/O)
-- Pressure: Normally Closed 10bar; Normally Open 6bar
--Temperature: -5 ÷80ºC
--Mode of action: Direct acting/ Semi-direct lift type
--Body material: Brass,Stainless
-- Sealing material: NBR
--Protection class: IP65
CAUTION
EPDM (E): suitable to water, hot water, gas and Freon, the MAX. temperature is 110ºC;
In case you choose EPDM, please state "E" in your order.

Viton (V): suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon;

the MAX.130ºC. In case you choose Viton, please state "V" in your order.

DN≥32,are metal covered coil, IP54 is standard

Thread: If different from G connection, it should be indicated.
How to order

Connection pipe size	Connection	Function type	Coil	Voltage
2W		160	---15			N	--DC:24V
	Blank: brass	025 250	06 25	Blank : Thread	Blank: N/C	N: IP65	AC:220V
	J: stainless	040 350	08 32	F: Flange	K: N/O		AC:110V
		160 400	10 40				DC:24V
		200 500	15 50				DC:12V
			20
Model		2W-025-06N		2W-025-08N	2W-040-08N	2W-04010N	2W-160-10N	2W-160-15N	2W-200-20N	2W-250-25N	2W-350-35	2W-400-40	2W-500-50
G Connection		1/8", 1/4"		1/8", 1/4"	1/4"	3/8"	3/8"	1/2"	3/4"	1"	1¼"	1½"	2"
Orifice Size	mm	2.5			4		16		20	25	35	40	50
Motion Pattern		Direct Action					Semi-direct Lift
Cv Value		0.23			0.6		4.8		7.6	12	24	29	48
L	mm	40.5	40.5		40.5	52.5	69	69	73	99	119	123	168
H	mm	75	75		75	90	117	117	123.5	134.5	170	172	209
H1	mm	66	66		66	76	101	101	107	113	143	144	172
Medium temperature		-5 ÷80ºC(-10÷130ºC)
Pressure	bar	Normally closed :0÷10; Normally Open:0÷6
Power		AC:220V~AC:230V/50-60HZ 22VA; AC110 ~AC:120V/50-60HZ 22VA; DC24 18W; DC12 17W ; Range:±10%,
