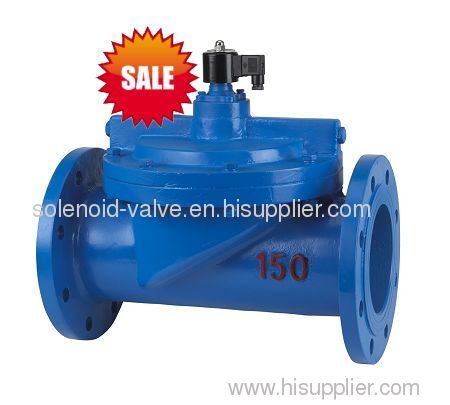

cast iron flange solenoid valve from China manufacturer

Payment Terms:	T/T,L/C,WU
Special Groups:	Water Solenoid Valve (143) Liquid Solenoid Valve (128) Air Solenoid Valve (100) Gas Solenoid Valve (111) Fuel Solenoid Valve (46) Oil Solenoid Valve (67) 12V Solenoid Valve (61) 24V Solenoid Valve (108) AC110V Solenoid Valve (99) AC120V Solenoid Valve (93) AC230V Solenoid Valve (90) AC240V Solenoid Valve (100) General Solenoid Valve (84)
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DFD-150CF

Production Capacity: 1000 PCS

Delivery Date: 10 days

Standard or Nonstandard: Standard

Structure: Pilot

Temperature of Media: Normal Temperature

Brand Name: ROUND STAR

Function: an electromechanical valve ...

Certificate: CE, ISO, ROHS

min and max orifice size: 1mm ~200mm

Company style: to be faithful,practical, c...

Market conception: what we do will be based on...

Means of Transport: Ocean,Air

Packing: wooden cases

Power: Solenoid

Pressure: Medium Pressure

Material: Casting

Media: Water

Specification: PILOT, LARGE

why us: more than 40 years experien...

Export Area: Asia,America,Europe and so ...

Company spirit: to challenge our future and...

Company value: to make wealth for our soci...

flange solenoid valve 2-Way One inlet and one outlet, and are used to permit and shut off fluid flow. The two types of operations are "Normally Clos

2way cast iron water, air, oil 200mm DN flange solenoid valve
2-Way One inlet and one outlet, and are used to permit and shut off fluid flow. The two types of operations are "Normally Closed" and "Normally Open".

flange solenoid valve
[Technical Specifications ]
-- Media: Water, Air, Oil (below 20cst)
--Temperature: -5 ÷80ºC
--Mode of action: Pilot operated
--Body material: Cast iron
-- Sealing material: NBR
--Protection class: IP65
--Function type: Normally Closed (N/C), Normally Open(N/O)
-- MAX. Pressure: Normally Closed 12bar; Normally Open 8bar

Flange D	Flange D1	Flange D2
DFD-40CF	150	110	4-Φ18
DFD-50CF	165	125	4-Φ18
DFD-65CF	185	145	4-Φ18
DFD-80CF	200	160	8-Φ18
DFD-100CF	220	180	8-Φ18
DFD-125CF	250	210	8-Φ18
DFD-150CF	285	240	8-Φ22
DFD-200CF	340	295	12-Φ22

How to order

Valve type

Connection pipe size

Function type

Voltage

OPTIONS
EPDM (E): suitable to water, hot water, gas, Freon, the MAX. 110ºC; In case you choose EPDM, please state "E" in your order.
Viton (V): suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon; the MAX.130ºC. In case you choose Viton, please state "V" .

PARAMETERS(N/C)

		DFD-40CF	DFD-50CF	DFD-65CF	DFD-80CF	DFD-100CF	DFD-125CF	DFD-150CF	DFD-200CF
Flange connection		1½"	2"	2½"	3"	4"	5"	6"	8"
Orifice Size	mm	40	50	65	80	100	125	150	200
Motion Pattern		Pilot Operated
Cv Value		21	30	52.5	81.7	128.4	221.7	291.7	513.5
L	mm	182	215	256	277	350	425	450	560
H	mm	196	200	280	287	330	437	460	547
H1	mm	125	120	185	190	230	310	318	380
Medium temperature		-5 ~ 80ºC
Pressure	bar	N/C:0.3÷12(0.3÷16) N/O: 0.3÷8
Power		AC:220V~AC:230V/50-60HZ 25VA; AC110 ~AC:120V/50-60HZ 26VA; DC24 12 W; DC12 14W ; Range:±10%,
